Induvac supplies a wide range of centrifugal fans for the most diverse applications in several industries. We provide high quality fans for competitive prices. Most of the fans are deliverable from stock.
Characteristics
- Suitable for the sucking and blowing of clean and polluted air.
- Compact design
- Pressure differences between 0 and 17.000 Pa
- Maximum capacities up to 1.500 m3/min
- Stable and vibration-free
- Almost free of maintenance
- Easy to install
- Extreme low sound level
- Mountable in any position

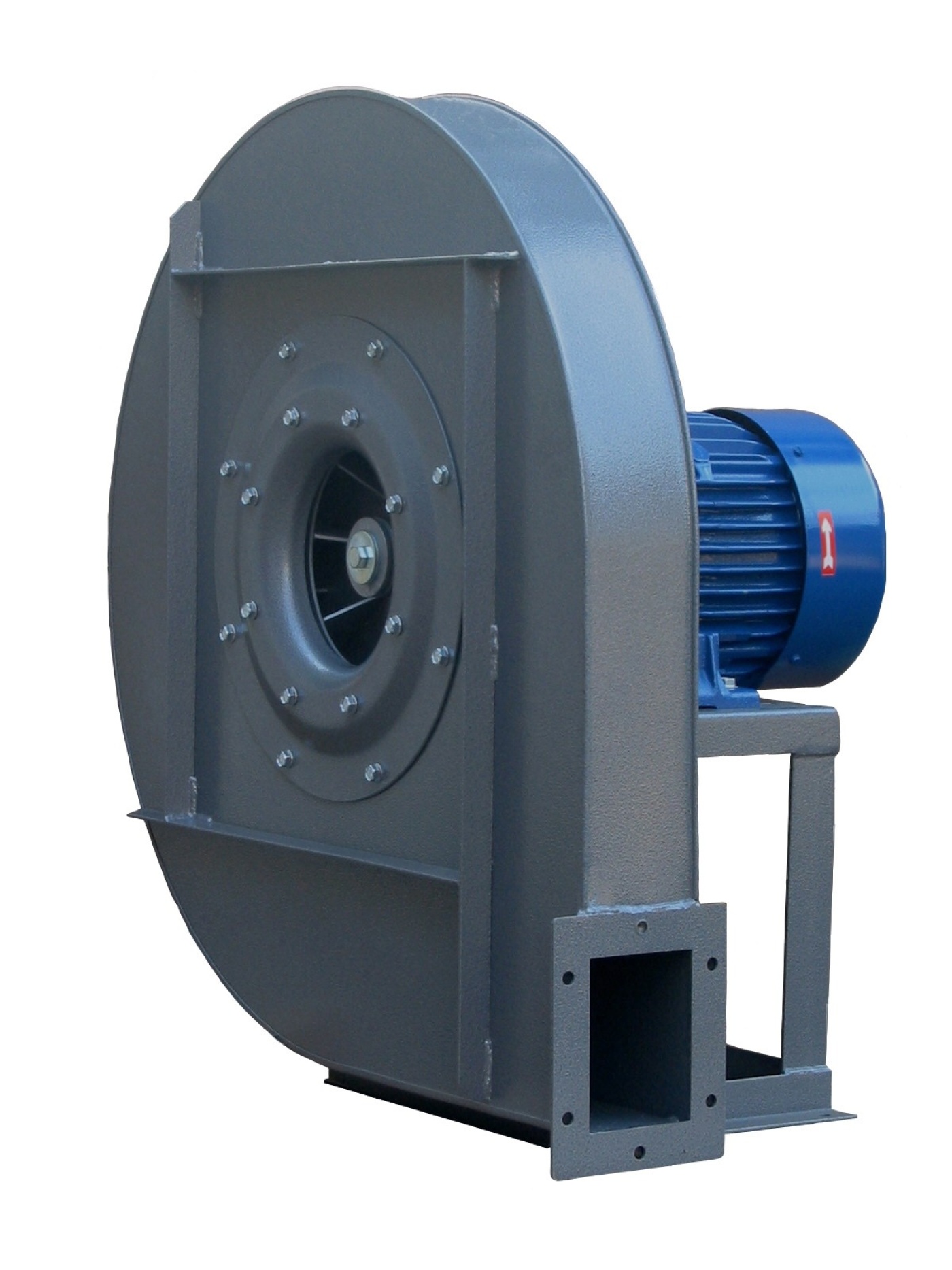

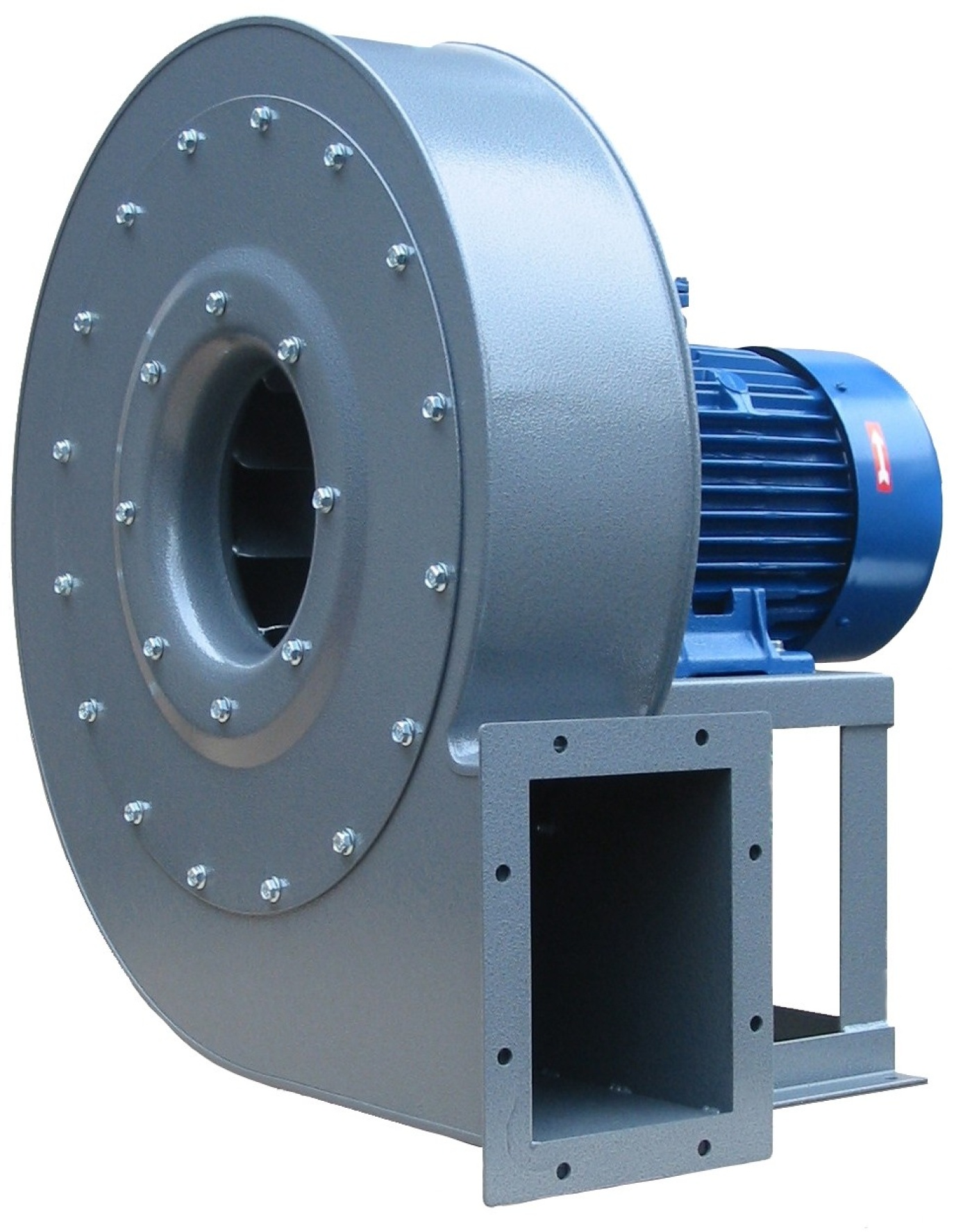

The standard design, with housing and impeller made of aluminum alloy, is a direct drive configuration, with a dynamically balanced impeller, fitted directly on the motor shaft. The impeller rotates inside of the stator housing with a very small clearance. Larger models include housings in cast iron. The absence of lubricants guarantees a 100% oil free vacuum or compression. Construction features of the centrifugal pumps are the very reliable operation and low maintenance. Induvac centrifugal fans are directly driven, impellers fixed directly on the drive shaft. Machines are small and lightweight. The electric motors are equipped with high quality bearings, wherefore the centrifugal blower is almost free of maintenance.
Special versions
Besides the steel versions all fans can be supplied in stainless steel 304. Other materials such as plastic or stainless steel 316 are available on request. Furthermore, there are high temperature versions available for air temperatures up to over 250 ° C. We provide belt drive versions and flanged motor versions as well. The range also includes Atex versions and versions with universal motor voltages for other countries. There are special fans for material transport. For every application and capacity Induvac could offer a fan.
